Ignition - Ontsteking Set - CDI Ignition Kit - 6V - 33W - Cone 1:75 - Sachs

Ignition - Ontsteking Set - CDI Ignition Kit

• 6V
• CDI
• 1:75

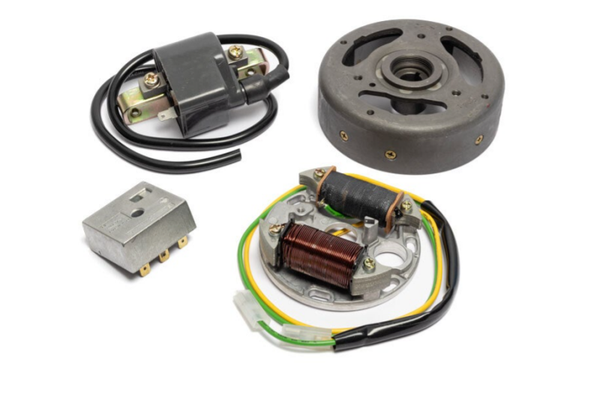

• High-quality and very user-friendly electronic flywheel magneto. Fits for Sachs 50S. Suitable for both air-cooled and fan-cooled models. The kit is delivered complete as shown in the picture. Can replace Bosch, Ducati, Motoplat, and other ignition systems.

  Fits Models:

Sachs:

• 50S

Product Info:

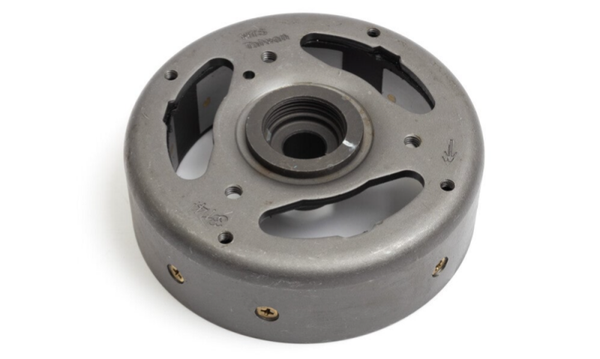

• Flywheel, outer diameter: 116mm

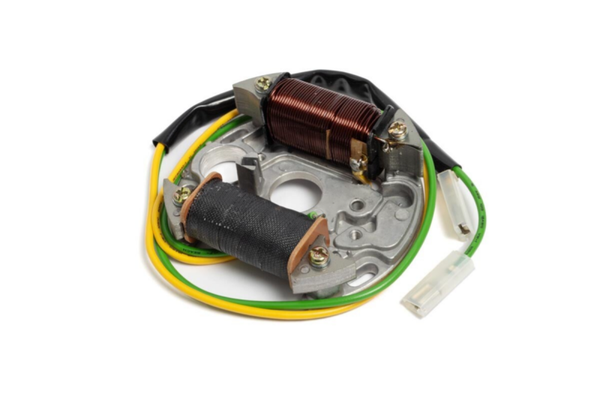

• Stator plate, outer diameter: Ø = approx. 90mm
• Stator plate, bolt spacing c-c: approx. 79mm (4 mounting holes)
• Primary coil/light coil, bolt spacing: c-c: approx. 54mm
• Light coil: 6V-33W (designed for use with voltage regulator)
• Rotation direction: Clockwise (right side)
• For crankshaft with taper: K1:7,5 (13,5%) and input diameter Ø = 14mm
• Mounting holes for fan wheel: 4xM5 and 3xM6
• Flywheel puller: Thread M26x1.5 (see NTS part no: 01-37-401)

Wiring diagram for installation included!
