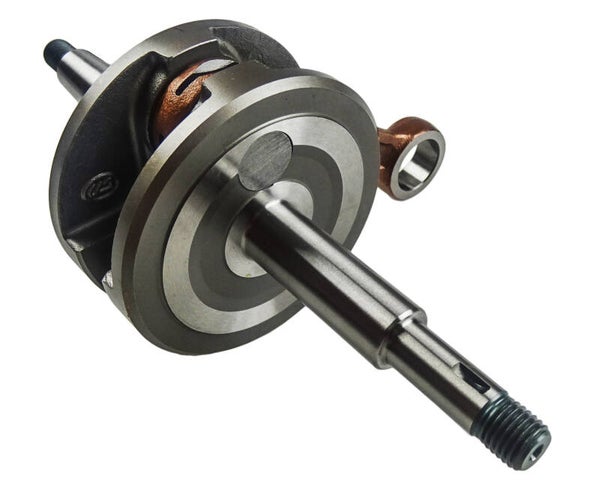

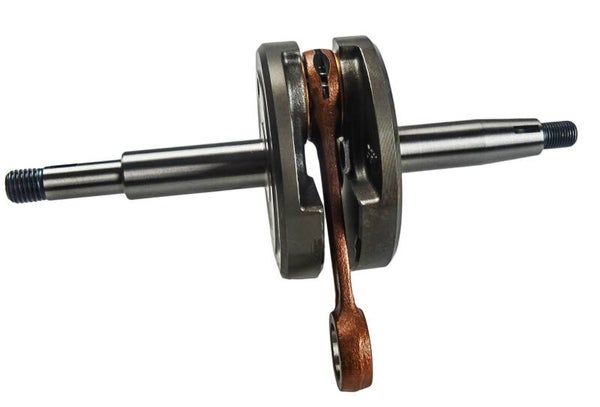

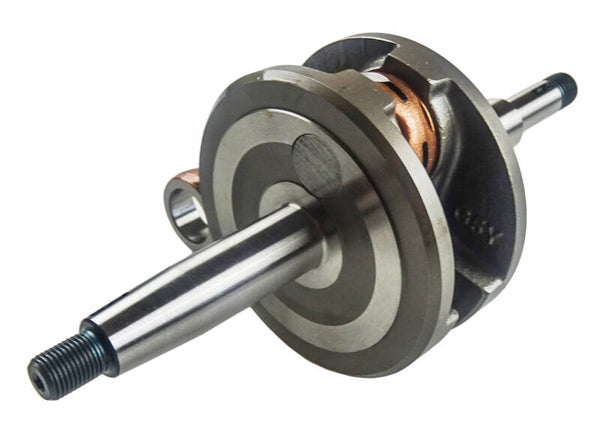

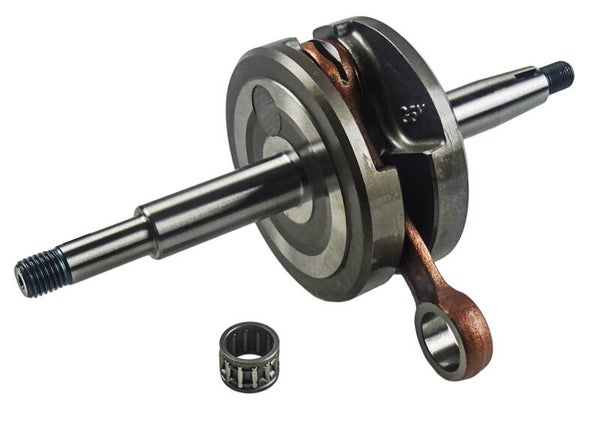

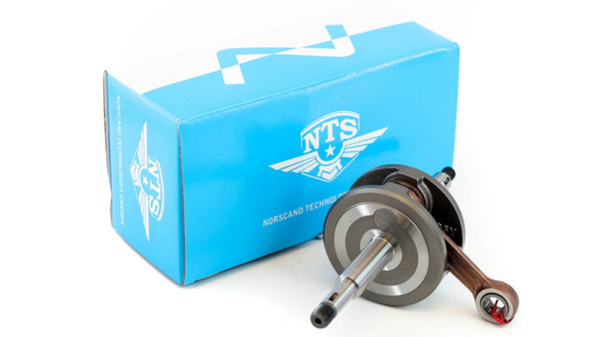

Sachs Crankshaft - 50S - 5G/6G
Sale!
Item number:
GP66-18-51-101-33117

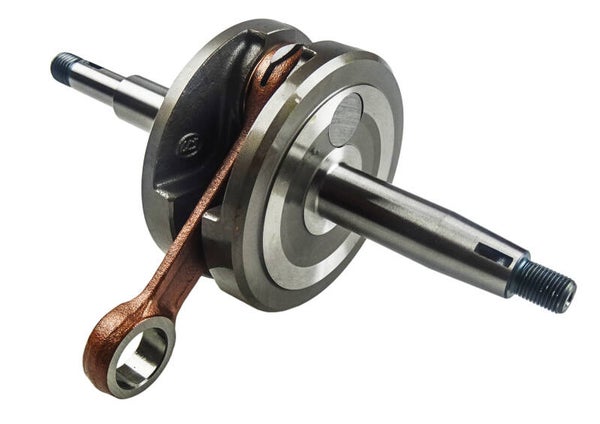

Sachs Crankshaft
- 5 & 6-Gears
Fits Models:
- 50S
OEM Ref:
- 0288 104 207
- 0288 104 100
Product Info:

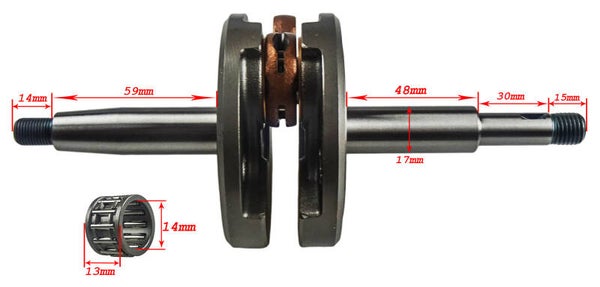

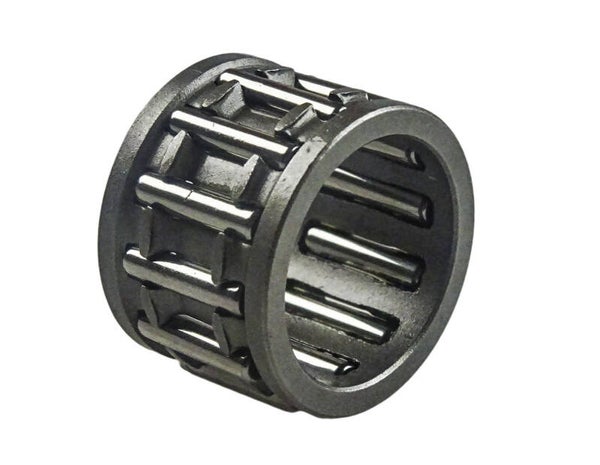

- Needle bearing: 14x18x13(for 14mm piston pin NTS: 01-11-306)

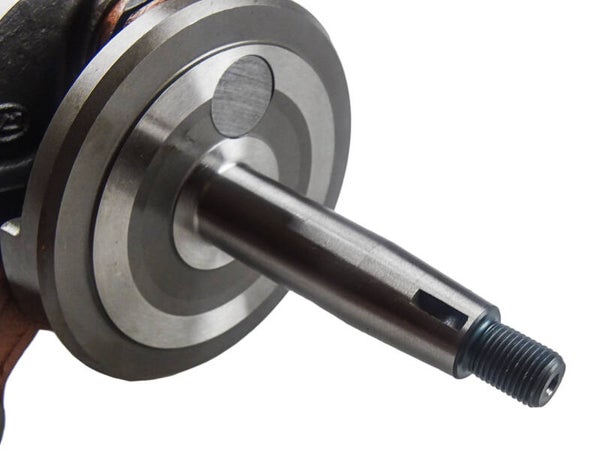

- Cone for flywheel: Conicity 1:7,5 (entry diameter ~14mm)
- Thread flywheel side: M10x1 left threaded
- Thread transmission side: M12x1,5
- Woodruff key, fly-wheel: 3×3,7 (NTS: 01-38-701)
- Woodruff key, drive gear: 3×3,7 (NTS: 01-38-701)
- Stroke: 44mm
