Ignition - Ontsteking - 6V - 19W - Puch Maxi / X30 - 0212 122 xxx
Sale!
Item number:
GP66-K4051

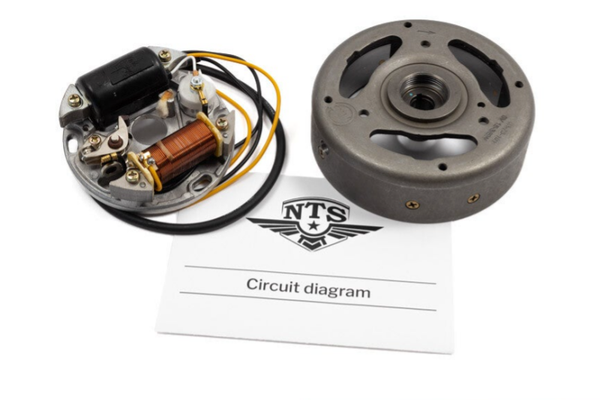

Ignition - Ontsteking - 6V - 19W
Replaces Bosch system with marking 0 212 112 ___ for:
Puch Maxi/X30 1gear automatic
Recomended bulbs:
Headlight: 6V-15/15W
Taillight: 6V-3~4W
Fits Models:
KTM
- Hobby 2 (Puch E50) 1970-1973
- Hobby 3/Duo (Puch E50/Z50) 1974-
Puch
- Maxi Engine 1g automatic (pedal)
- Maxi N/P/K. w/o rear suspension
- Maxi S/L/K with rear suspension
- Maxi Sport S/MK2
- Maxi engine E50 1g automatic (kickst.)
- Mini Maxi
- X30-A/Maxi Sport (1g.auto)
- X40
Technical data:
- Flywheel, outer diameter: 116mm

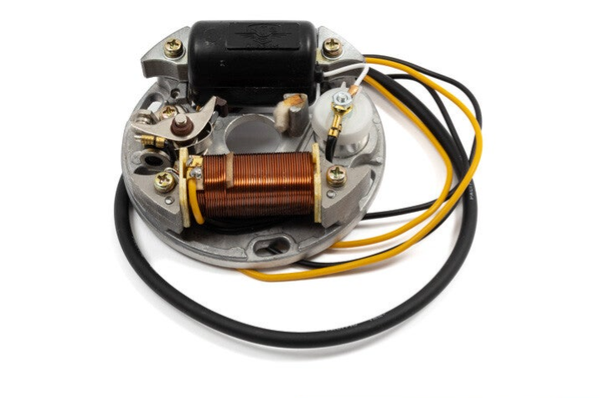

- Stator plate, outer diameter: Ø = approx. 90mm
- Stator plate, bolt spacing c-c: approx. 79mm (4 mounting holes)
- Ignition coil/light coil, bolt spacing: c-c: approx. 54mm
- Ignition cable: L = ~400mm
- Light/brake light coil: 6V-15-5W
- Tail light coil: 6V-3W
- For crankshaft with taper: K1:5 (20%) and input diameter ~12mm
- Rotation direction: Clockwise (left side)
- Mounting holes for fan wheel: 4xM5 and 3xM6
- Flywheel puller: Thread M26x1.5 (see NTS part no: 01-37-401)
Wiring diagram included for correct connection.
Recommended bulbs/horn:
Headlight: 6V-15/15W
Tail light: 6V-3W
Brake light: 6V-5W
Horn: 6V/AC (GP66-05-33-101)
Note:
- Grease the felt that lubricates the flywheel cam to reduce wear on the switch lug!
- The contact distance is set to approx. 0.35~0.45mm at fully open switch tips. Performed using a blade gauge (see art.no. 14-61-401)
Replaces:
- 349.2.50.000.0 (0212 112 062)
- 349.2.50.009.0 (0212 112 096)
