Item number:
GP66-K4045

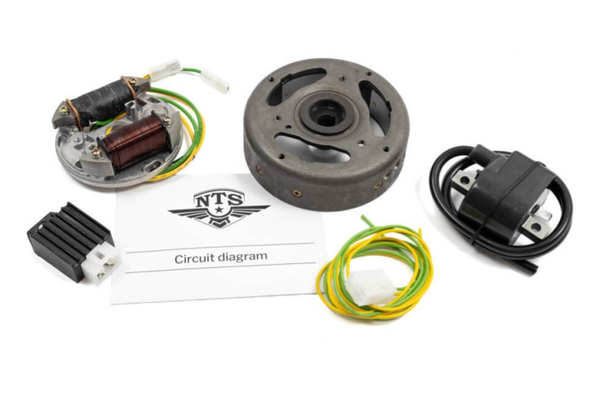

CDI Ignition - CDI Ontsteking - 6V - 33W
Replaces Bosch generators marked 0212 112 ___ for: Puch Maxi
Intended for machines with brake lights
Fits Models:
KTM
- Hobby 2 (Puch E50) 1970-1973
- Hobby 3/Duo (Puch E50/Z50) 1974-
Puch
- Maxi Engine 1g automatic (pedal)
- Maxi N/P/K. w/o rear suspension
- Maxi S/L/K with rear suspension
- Maxi Sport S/MK2
- Maxi engine E50 1g automatic (kickst.)
- Mini Maxi
- X30-A/Maxi Sport (1g.auto)
- X40
Technical data:
- Flywheel, outer diameter: 116mm

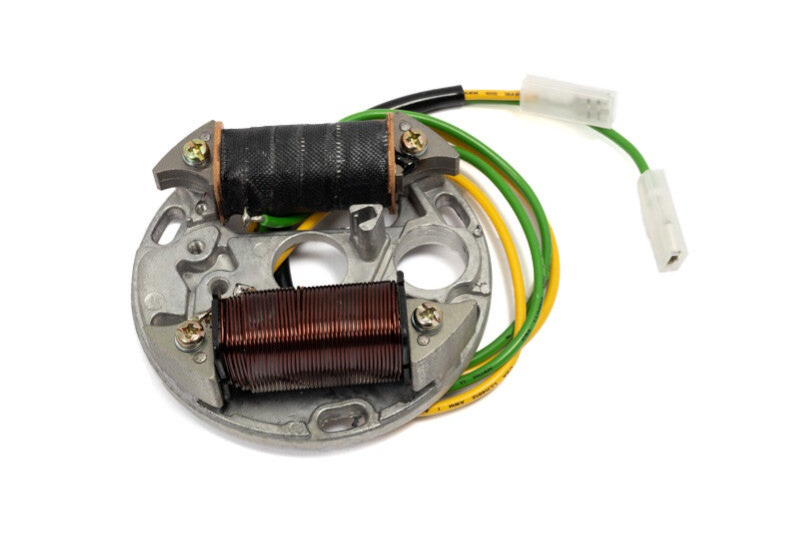

- Stator plate, outer diameter: Ø = approx. 90mm
- Stator plate, bolt spacing c-c: approx. 79mm (4 mounting holes)
- Primary coil/light coil, bolt spacing: c-c: approx. 54mm
- Light coil: 12V-43W (designed for use with voltage regulator)
- Rotation direction: Clockwise (right side)
- For crankshaft with taper: K1:5 (20%) and input diameter Ø = 12mm
- Flywheel puller: Thread M26x1.5 (see NTS part no: 01-37-401)
Wiring diagram for installation included!
Recommended bulbs/horn:
Headlight: 12V-35/35W
Brake light: 12V-5W
Tail light: 12V-3~4W
Horn: 12V/AC
Note:
- Grease the felt that lubricates the flywheel cam to reduce wear on the switch lug!
- The contact distance is set to approx. 0.35~0.45mm at fully open switch tips. Performed using a blade gauge (see art.no. 14-61-401)
