CDI Ignition - CDI Ontsteking - 6V - 33W - Puch Maxi / X30 - 0212 122 xxx
Sale!
Item number:
GP66-K4041
CDI Ignition - CDI Ontsteking - 6V - 33W
High-quality and very user-friendly electronic flywheel magneto.
Fits for Puch Maxi.

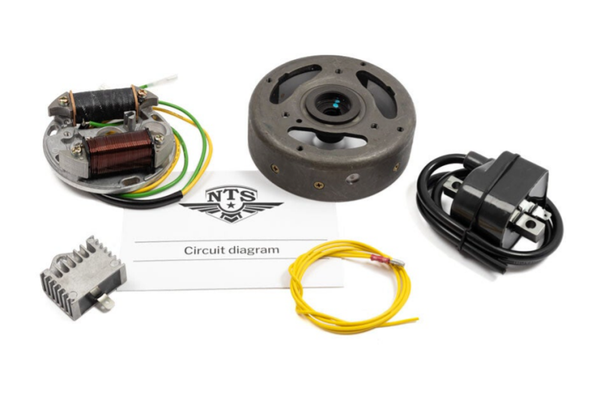

The kit is delivered complete as shown in the picture.
Can replace Bosch, Iskra, Ducati, Motoplat, Stefa, and other ignition systems.
Fits Models:
KTM
- Hobby 2 (Puch E50) 1970-1973
- Hobby 3/Duo (Puch E50/Z50) 1974-
Puch
- Maxi Engine 1g automatic (pedal)
- Maxi N/P/K. w/o rear suspension
- Maxi S/L/K with rear suspension
- Maxi Sport S/MK2
- Maxi engine E50 1g automatic (kickst.)
- Mini Maxi
- X30-A/Maxi Sport (1g.auto)
- X40
Technical data:

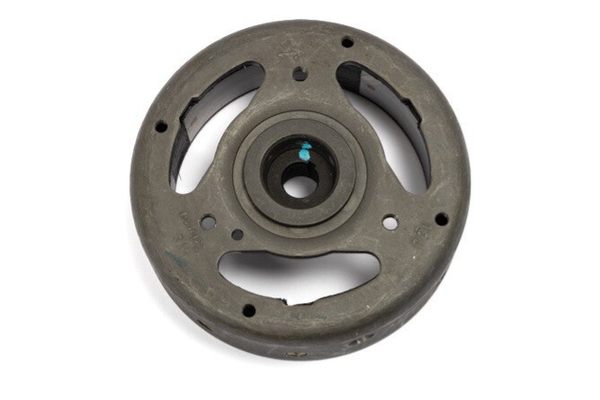

- Flywheel, outer diameter: 116mm
- Stator plate, outer diameter: Ø = approx. 90mm
- Stator plate, bolt spacing c-c: approx. 79mm (4 mounting holes)
- Primary coil/light coil, bolt spacing: c-c: approx. 54mm
- Light coil: 6V-33W (designed for use with voltage regulator)
- Rotation direction: Clockwise (right side)
- For crankshaft with taper: K1:5 (20%) and input diameter Ø = 12mm
- Flywheel puller: Thread M26x1.5 (see NTS part no: 01-37-401)
Wiring diagram for installation included!
Recommended bulbs/horn:
Headlight: 6V-25/25W
Brake light: 6V-5W
Tail light: 6V-3~4W
Horn: 6V/AC (GP66-05-33-101)
Note:
- Grease the felt that lubricates the flywheel cam to reduce wear on the switch lug!
- The contact distance is set to approx. 0.35~0.45mm at fully open switch tips. Performed using a blade gauge (see art.no. 14-61-401)
