Pilot Jet - Stationair Sproeier - SET - 15-37,5 - Suzuki/Yamaha/Zundapp
€39.95
Item number:
GP44-94019-34814
Pilot Jet - Stationair Sproeier
- SET
- L 13,5mm
The Pilot Jet controls the amount of petrol needed when starting the engine, idling and when the engine is running at low revs, i.e. when the throttle is
open between approx: 0~1/8
- SET
- VM10/12/14/15/16SC for Suzuki K50
- VM10/12/14/16SC for Yamaha LB2/LB3/FS80 (Suzuki K50 16mm)
- VM20-151 for Zündapp

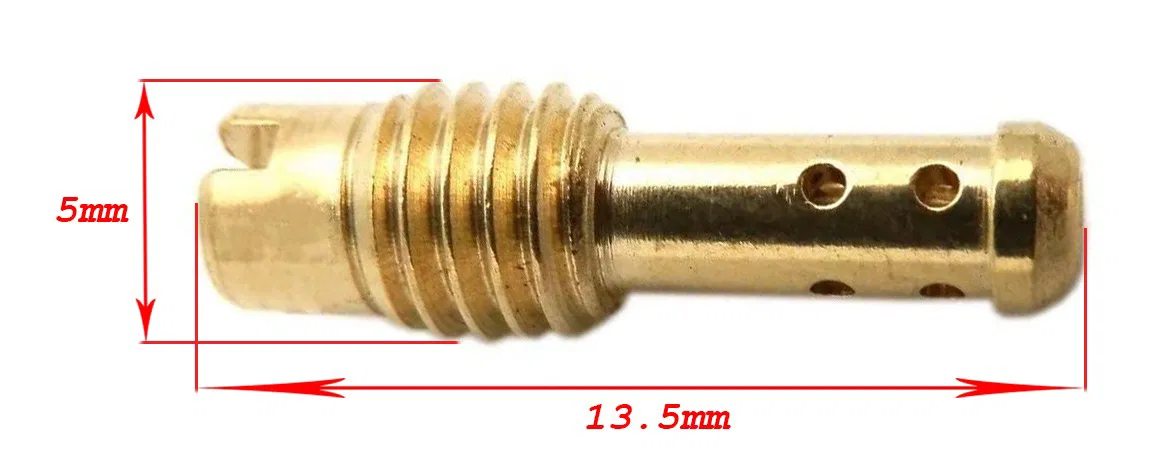

- Length: approx. 13.5mm
- Slotted screw Ø=4mm (head)
- Thread: M5x0.8mm
- Side holes: 8
- Sizes: #15,#17,5, #20, #22,5, #25,0, #27,5,#30,0, #32,5. #35,0,#37,5
Fits model:
Honda:
- VM20 met drukchoke
Suzuki
- A50 (1971)
- A50-II/A50L (1972~74)
- A50K B/DB (1977~78)
- A50M (1975~76)
- A50P
- AC50/AC50L (1971~74)
- AC50B/DB (1977~78)
- AC50M (1975~76)
- AC50N/DN (1978-)
- AS50 (1971)
- K50
- K50-I (1970)
- K50-II/K50K/K50L (1971~1974)
- K50B/DB (1977~78)
- K50M (1975~76)
- K50N/DN (1978~82)
- K50Z/DZ (1983-)
- M12/M15 50CC (-1969)
- MT50R/J/K Trailshopper (1971~73)
- OR50
- RV50K/L (1972~74)
Yamaha
- Chappy LB50/LB2
- FS80
- RX80
- PW80
Zündapp
- 530 KS50/KS80 (284/314, 5g)
- VM20 met drukchoke
