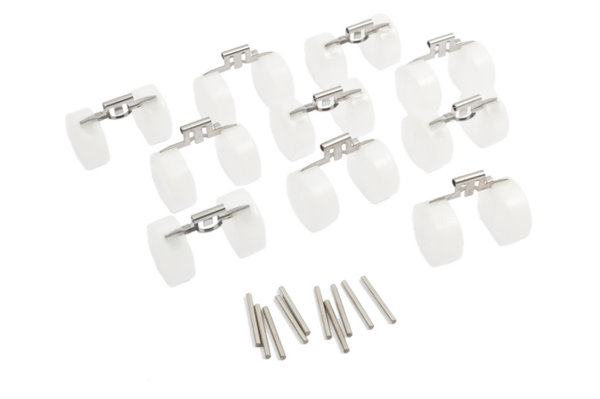

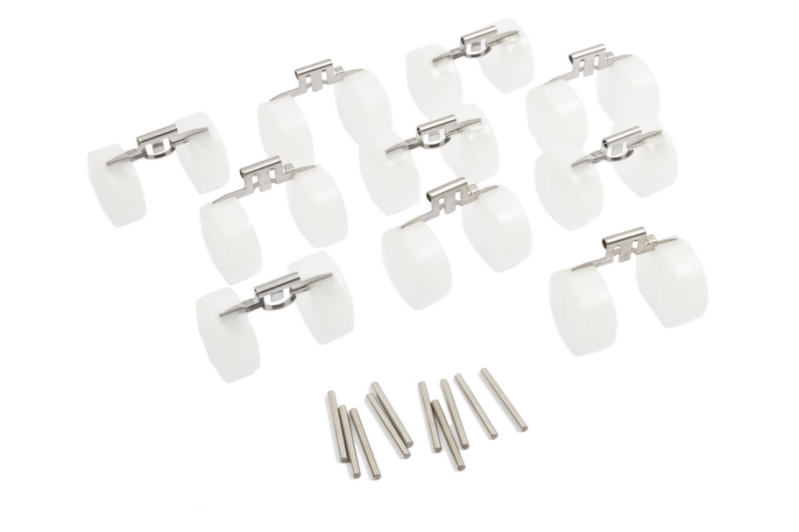

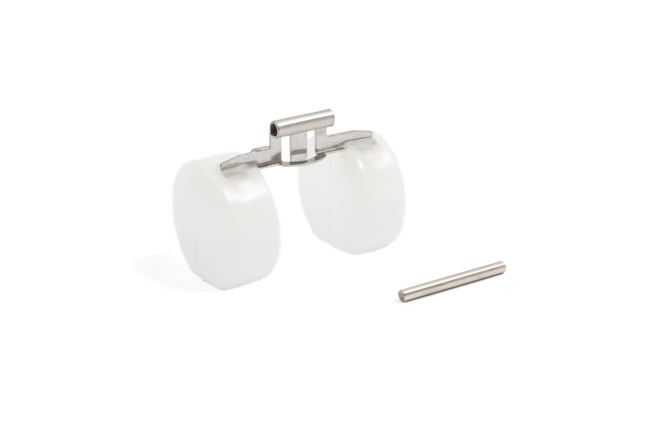

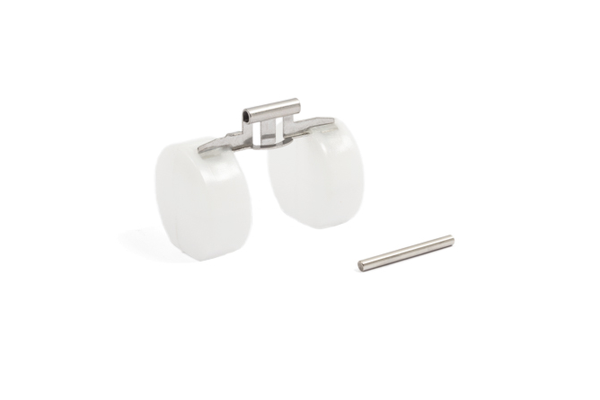

Mikuni VM16SH Float - Honda / Suzuki / Yamaha

Mikuni VM16 Float

• 01-24-201 NTS-VM16SH

Fits Models:

• Honda
• Yamaha
• Suzuki
• GP66-01-24-201 Mikuni VM16SH Carburateur

Product Info:

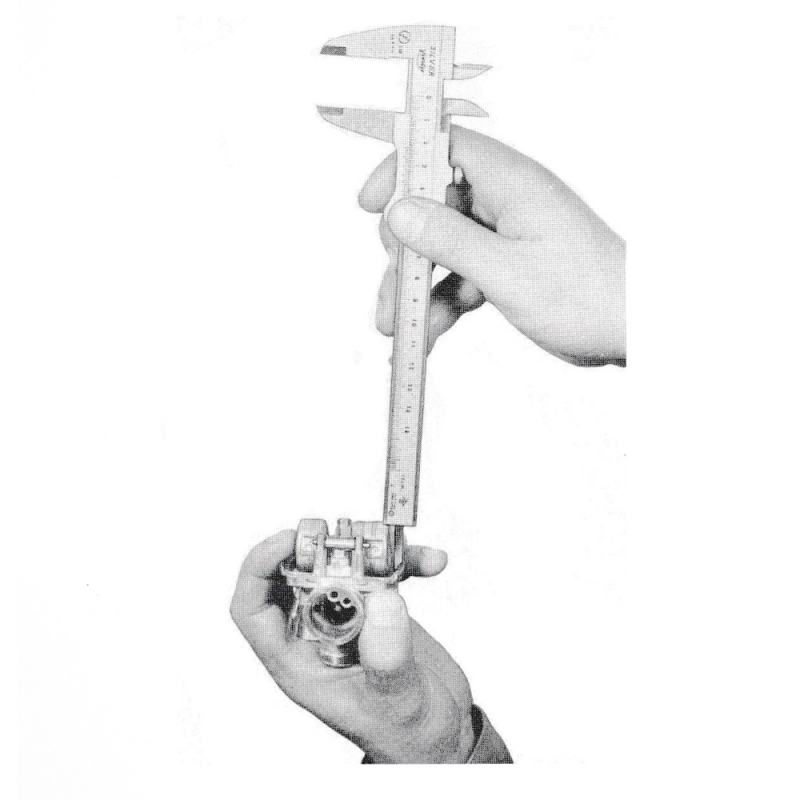

The float level must be adjusted to the dimensions specified below. This is done primarily by bending the float tab upward or downward, and secondly — if the adjustment range of the tab is insufficient — by slightly bending the entire metal bracket holding the floats to allow more room for fine adjustment via the tab. See picture 2 for how to easily measure the level using a standard caliper!

Mikuni VM16SH = 21.5 (±0.5 mm)

OEM Ref:

• 13252-06110
